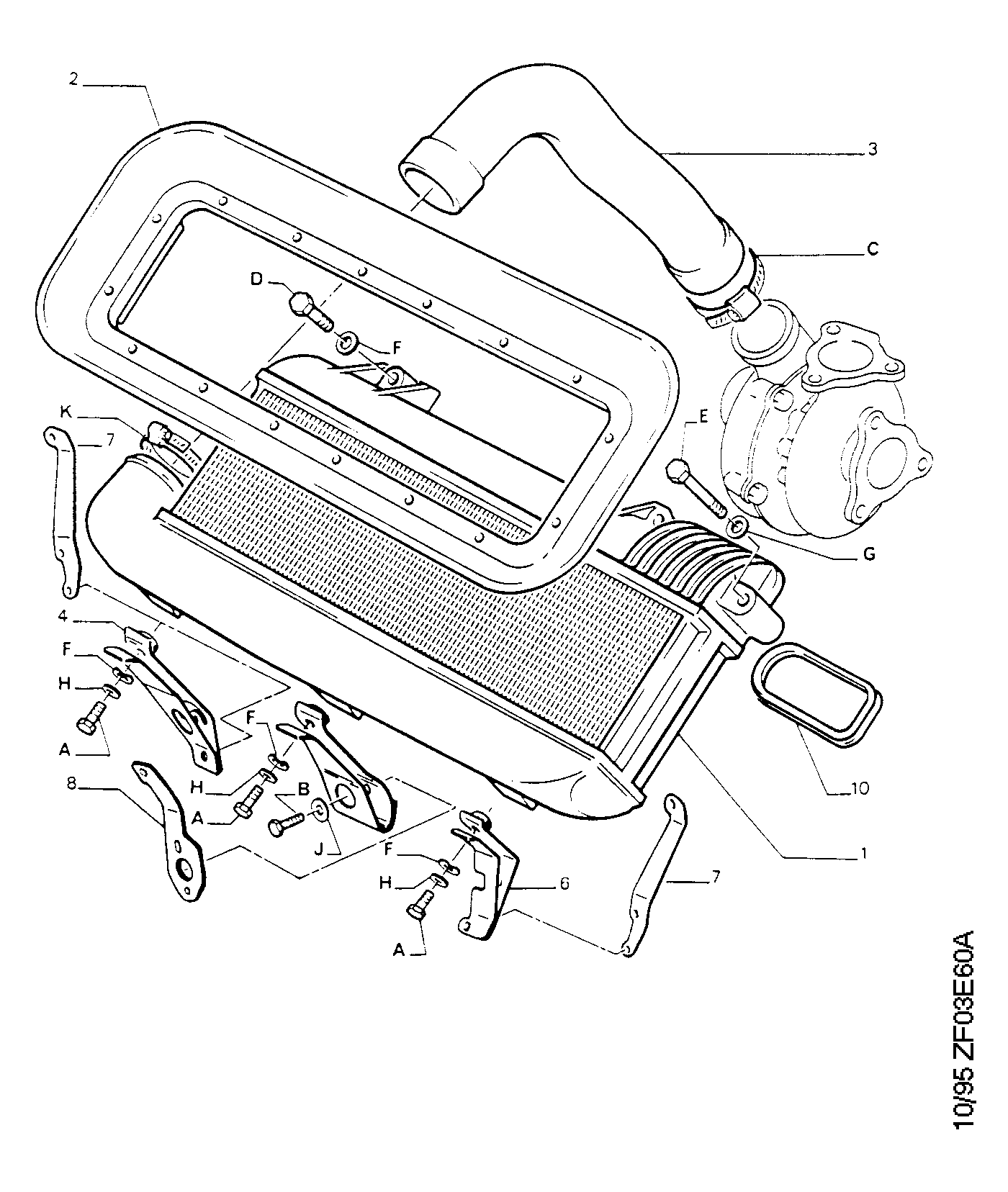

| FR | 405F 0 03E60A | COLLECTEUR D ADMISSION |
| 01 | 0384 A8 | 01 | ECHANGEUR AIR N |
 | |||
| 02 | 0384 A9 | 01 | JOINT |
| | |||
| 03 | 0382 15 | 01 |
RACCORD AIR
HUTCHINSON |
| | |||
| 04 | 0377 15 | 01 | PATTE MAINTIEN |
| | |||
| 05 | 0377 16 | 01 | |
| | |||
| 06 | 0377 17 | 01 | |
| | |||
| 07 | 0363 12 | 02 | |
| | |||
| 08 | 0363 13 | 01 | |
| | |||
| 10 | 0365 22 | 01 | JOINT |
| | |||
| 9A | 6915 69 | 01 | VIS TH 6X100-16 |
| RP 6917 A5 | 02 | ||
| | |||
| 9B | 6922 50 | 01 | VIS TH RDL 7X100-20 |
| | |||
| 9C | 6981 42 | 01 | COLLIER METAL DIAM 50-70 |
| | |||
| 9D | 6913 E4 | 01 | VIS CHC R D L 8X125-65 |
| | |||
| 9E | 6913 44 | 01 | VIS CHC 8X125-35 |
| | |||
| 9F | 6962 04 | 01 |
RONDELLE ELAST 6X12,2-0,5 |
| | |||
| 9G | 6962 13 | 01 | 8X17-0,8 |
| | |||
| 9H | 6947 80 | 01 | RONDELLE PLATE 6X18-2 |
| | |||
| 9J | 6962 70 | 01 | RONDELLE ELAST 7X18-1,4 |
| | |||
| 9K | 6981 63 | 01 | COLLIER METAL DIAM 60-100 LARG 9 |
| RP 6981 46 | 01 | ||
